[midPoint] MidPoint 4.9: Help Mapping Resource Group Membership (icfs:groups) to User Role Assignment (assignment) - Query Issues in Inbound Script
Rafael Mantellatto
rafael.mantellatto at nomadglobal.com
Wed Apr 23 23:53:19 CEST 2025
Hello MidPoint Community,
I am currently working with MidPoint 4.9 and integrating a JumpCloud
<https://jumpcloud.com/> resource. I need assistance with mapping group
memberships from the JumpCloud resource shadow (__ACCOUNT__) to RoleType
assignments on the corresponding MidPoint UserType focus object.
*Goal:*The resource shadow (__ACCOUNT__) has an attribute icfs:groups which
contains the identifier(s) of the JumpCloud group(s) the user belongs to. I
want to configure MidPoint so that during synchronization, it
creates/removes AssignmentType entries under the user's assignment path,
where each assignment's targetRef points to the RoleType object in MidPoint
that corresponds to the JumpCloud group ID.
*Configuration Overview:*
- Resource: JumpCloud Connector
- MidPoint Version: 4.9
- Account Mapping: __ACCOUNT__ (kind: account) maps icfs:groups
(String/Multivalue String).
- Role Mapping: __GROUP__ (kind: entitlement) maps icfs:uid (JumpCloud
Group ID) to the RoleType's identifier attribute.
*Attempts and Failures:*
I have tried several approaches within the schemaHandling for the
__ACCOUNT__ object type's icfs:groups attribute, but have encountered
issues:
1) Direct Inbound Mapping ("As Is"):
- Configured <inbound> with <target><path>c:assignment</path></target>
and no <expression> (implicit "As Is").
- Error: Failed during reconciliation with
java.lang.IllegalArgumentException: Expected class
com.evolveum.midpoint.xml.ns._public.common.common_3.AssignmentType type,
but got class java.lang.String. MidPoint expected an AssignmentType object,
not the raw group ID string.
2) <association> Tag:
- Tried adding an <association> definition within the <attribute
ref="icfs:groups"> tag in schemaHandling.
- Error: Failed to save the resource XML with a schema validation error:
Item association has no definition (in value CTD
({.../common/common-3}ResourceAttributeDefinitionType)).
3) Inbound Script (Returning AssignmentType):
- Wrote a Groovy script within
<inbound><expression><script><code>...</code></script></expression>
targeting c:assignment. The script aims to:
- Receive the group ID(s).
- Find the corresponding RoleType OID using midpoint.searchObjects.
- Construct and return an AssignmentType with the targetRef populated.
- Errors Encountered in Script:
- Using midpoint.searchObjects(RoleType.class, objectQuery): Failed
with groovy.lang.MissingMethodException: No signature of method:
...searchObjects() is applicable for argument types: (Class,
com.evolveum.midpoint.prism.query.ObjectQuery) ....
- Using midpoint.searchObjects(RoleType.class, queryFilter) (passing
EqualFilterImpl directly): Failed with the same MissingMethodException.
- Using ObjectQuery.createObjectQuery(queryFilter): Failed with
java.lang.NoSuchMethodError: No signature of method: static
com.evolveum.midpoint.prism.query.ObjectQuery.createObjectQuery() is
applicable for argument types:
(com.evolveum.midpoint.prism.impl.query.EqualFilterImpl) ....
- Using QueryBuilder.queryFor(...): Failed compilation with unable to
resolve class com.evolveum.midpoint.prism.query.QueryBuilder.
- Conclusion: It seems the necessary query API (searchObjects,
QueryBuilder, ObjectQuery.createObjectQuery) is not available or working
correctly within the context of this specific inbound script
expression in
MidPoint 4.9.
*Relevant XML Snippets:*
<!-- Within Resource XML -->
<schemaHandling> <objectType id="5">
<kind>account</kind>
<displayName>__ACCOUNT__</displayName>
<delineation>
<objectClass>ri:AccountObjectClass</objectClass>
</delineation>
<focus>
<type>c:UserType</type>
</focus>
<attribute id="9">
<ref>ri:email</ref>
<inbound id="10">
<name>Map User Email</name>
<strength>strong</strength>
<target>
<path>emailAddress</path>
</target>
</inbound>
</attribute>
<attribute id="11">
<ref>ri:firstname</ref>
<inbound id="12">
<name>Map User Firstname</name>
<strength>strong</strength>
<target>
<path>givenName</path>
</target>
</inbound>
</attribute>
<attribute id="13">
<ref>ri:lastname</ref>
<inbound id="14">
<name>Map User Lastname</name>
<strength>strong</strength>
<target>
<path>familyName</path>
</target>
</inbound>
</attribute>
<attribute id="15">
<ref>icfs:uid</ref>
<inbound id="16">
<name>Map User UID</name>
<strength>strong</strength>
<target>
<path>extension/jumpCloudUid</path>
</target>
</inbound>
</attribute>
<attribute id="17">
<ref>icfs:name</ref>
<inbound id="18">
<name>Map User Username</name>
<strength>strong</strength>
<target>
<path>name</path>
</target>
</inbound>
</attribute>
<attribute id="19">
<ref>ri:suspended</ref>
<inbound id="20">
<name>Map User Status</name>
<strength>strong</strength>
<expression>
<script>
<code>if (input == null) {
return 'enabled'
}
// No JumpCloud, suspended=true significa usuário desabilitado
// No MidPoint, precisamos retornar 'disabled' quando suspended=true
return input ? 'disabled' : 'enabled'</code>
</script>
</expression>
<target>
<path>activation/administrativeStatus</path>
</target>
</inbound>
</attribute>
<attribute id="170">
<ref>icfs:groups</ref>
<inbound id="196">
<name>Map User Membership to Role Assignment
(Script)</name>
<strength>strong</strength>
<expression>
<script>
<code>import
com.evolveum.midpoint.xml.ns._public.common.common_3.RoleType
import com.evolveum.midpoint.xml.ns._public.common.common_3.AssignmentType
import
com.evolveum.midpoint.xml.ns._public.common.common_3.ObjectReferenceType
import com.evolveum.midpoint.prism.path.ItemPath
import com.evolveum.midpoint.prism.PrismContext
log.info("SCRIPT(SeparateFilter) STARTED - Input: {}, User: {}", input,
focus?.getName())
PrismContext prismCtx = midpoint.getPrismContext()
if (prismCtx == null) {
log.error("PrismContext is null! Cannot proceed.")
return null // Ou [] se esperar lista
}
// Lista temporária para normalizar a entrada
def normalizedInput = []
if (input != null) {
if (input instanceof Collection) {
normalizedInput.addAll((Collection)input)
} else {
normalizedInput.add(input)
}
}
// Filtrar valores nulos e depois strings vazias/em branco
def groupIdsToProcess = normalizedInput
.findAll { it != null } // Primeiro, remove nulos
.collect { it.toString().trim() } // Converte para String e remove
espaços extras
.findAll { !it.isEmpty() } // Remove strings vazias resultantes
if (groupIdsToProcess.isEmpty()) {
log.info("No valid group IDs found to process after filtering.")
return [] // Retorna lista vazia de Assignments
}
log.info("Processing filtered group IDs: {}", groupIdsToProcess)
def assignments = [] // Lista para guardar AssignmentType
def roleIdentifierPath = ItemPath.create(RoleType.F_IDENTIFIER)
groupIdsToProcess.each { groupId ->
log.info("Searching Role with identifier '{}' = {}",
roleIdentifierPath, groupId)
def queryFilter
try {
queryFilter = prismCtx.queryFor(RoleType.class)
.item(roleIdentifierPath).eq(groupId)
.buildFilter()
} catch (Exception e) {
log.error("Error building query filter for Role ID {}: {}",
groupId, e.getMessage())
return // continue para o próximo ID
}
def results
try {
// Tentando passar o ObjectFilter diretamente - FALHA AQUI!
results = midpoint.searchObjects(RoleType.class, queryFilter)
} catch (Exception e) {
log.error("!!! FAILED HERE: Failed midpoint.searchObjects (direct
filter) for Role ID {}: {} ({})",
groupId, e.getMessage(), e.getClass().getName())
return // continue
}
// Código abaixo não é alcançado devido ao erro acima
if (results.isEmpty()) {
log.warn("No Role found for JumpCloud Group ID: {}", groupId)
} else if (results.size() > 1) {
log.warn("Multiple Roles found for JumpCloud Group ID: {}. OIDs:
{}. Ambiguous.",
groupId, results.collect { it.getOid() })
} else {
def matchingRole = results.get(0)
log.info("Found Role: {} (OID: {})", matchingRole.getName(),
matchingRole.getOid())
def roleRef = new ObjectReferenceType()
roleRef.setOid(matchingRole.getOid())
roleRef.setType(RoleType.COMPLEX_TYPE)
def assignment = new AssignmentType()
assignment.setTargetRef(roleRef)
assignments.add(assignment)
log.info("Prepared AssignmentType for Role: {}",
matchingRole.getName())
}
} // Fim do loop .each
log.info("SCRIPT(SeparateFilter) FINISHED - Returning {} AssignmentType
objects.", assignments.size())
return assignments</code>
</script>
</expression>
<target>
<path>c:assignment</path>
</target>
</inbound>
</attribute>
<correlation>
<correlators>
<items id="46">
<name>Correlate by username</name>
<description>Correlaciona usuários pelo
username</description>
<enabled>true</enabled>
<item id="47">
<ref>c:name</ref>
</item>
</items>
</correlators>
</correlation>
<synchronization>
<reaction id="23">
<name>Update User on Linked</name>
<situation>linked</situation>
<actions>
<synchronize id="49">
<objectTemplateRef
oid="00000000-0000-0000-0000-000000000380" relation="org:default"
type="c:ObjectTemplateType">
<!-- Person Object Template -->
</objectTemplateRef>
</synchronize>
</actions>
</reaction>
<reaction id="25">
<name>Create User on Unmatched</name>
<situation>unmatched</situation>
<actions>
<addFocus id="26">
<objectTemplateRef
oid="00000000-0000-0000-0000-000000000380" relation="org:default"
type="c:ObjectTemplateType">
<!-- Person Object Template -->
</objectTemplateRef>
</addFocus>
</actions>
</reaction>
<reaction id="50">
<name>Link User on Unlinked</name>
<situation>unlinked</situation>
<actions>
<link id="51">
<objectTemplateRef
oid="00000000-0000-0000-0000-000000000380" relation="org:default"
type="c:ObjectTemplateType">
<!-- Person Object Template -->
</objectTemplateRef>
</link>
</actions>
</reaction>
</synchronization>
</objectType>
</schemaHandling>

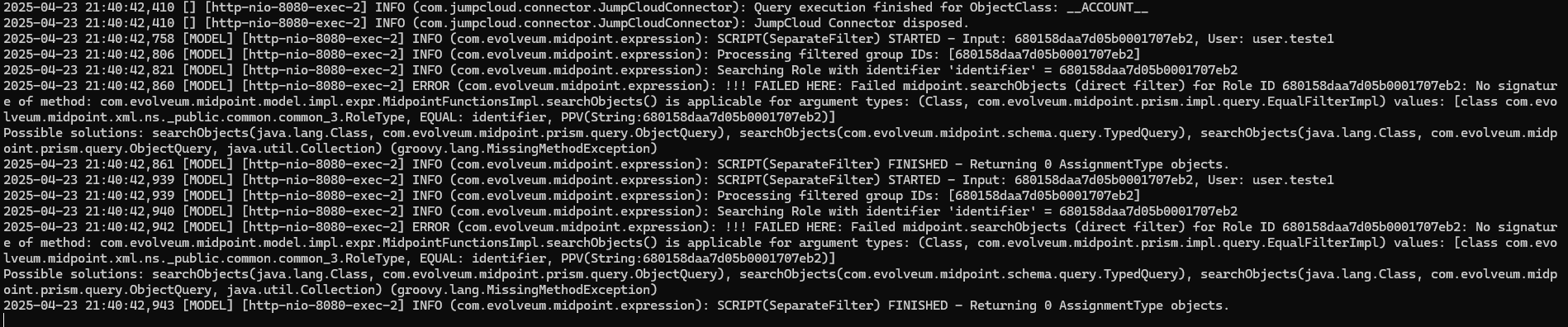

*Error reconciling a user:*
[image: image.png]
*Question:*
Given the limitations encountered with inbound scripts and the
<association> tag validation error in MidPoint 4.9, what is the recommended
approach to correctly map an external group membership attribute (like
icfs:groups containing identifiers) to UserType/assignment referencing the
corresponding RoleType?
Should this logic be moved to a Synchronization Reaction (e.g., using
<script> within an action) or an Object Template? Is there a different way
to configure an association or mapping that avoids the API limitations
within the inbound script context?
Any guidance or examples would be greatly appreciated.
Thank you,
Rafael Mantellatto
--
*Important - This message, along with any other attached information, is
confidential and protected by law, and only its recipients are authorized
to use it. If you received it in error, please inform the sender and then
delete the message. Note: there is no authorization to store, forward,
print, use and/or copy its content.*
*Importante - Esta mensagem,
juntamente com qualquer outra informação anexada, é confidencial e
protegida por lei, e somente os seus destinatários são autorizados a
usá-la. Caso a tenha recebido por engano, por favor, informe o remetente e
em seguida apague a mensagem. Observação: não há autorização para
armazenar, encaminhar, imprimir, usar e/ou copiar o seu conteúdo.*
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.evolveum.com/pipermail/midpoint/attachments/20250423/f0ff0ed1/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 125002 bytes
Desc: not available
URL: <https://lists.evolveum.com/pipermail/midpoint/attachments/20250423/f0ff0ed1/attachment-0001.png>
More information about the midPoint
mailing list
